HMDI kabels zijn voor in de huiskamer vaak dé standaard om hoge kwaliteit digitale beelden en geluid door te sturen.
Typenummering
Let op: In principe zijn alle HDMI kabels geschikt voor alle HDMI standaarden. Typenummering heeft betrekking over de aansluiting van het betreffende apparaat.
Om beelden in een resolutie van 4K te versturen is minimaal een HDMI aansluiting vanaf type 1.4 nodig. Je kunt dan beelden doorsturen op de volle 4K resolutie (4096×2160) met 24 frames per seconde.
Zie onderstaande tabel voor een vergelijking van de specificaties per HDMI versie.
Vanaf HDMI 2.0 is er ook ondersteuning voor HDR (High Dynamic Range) in 60Hz.
Vergelijking HDMI versies
| HDMI Versie | |||||
|---|---|---|---|---|---|
| 1.0–1.2a | 1.3–1.3a | 1.4–1.4b | 2.0–2.0b | 2.1 | |
| Release Date | Dec 2002 (1.0) May 2004 (1.1) Aug 2005 (1.2) Dec 2005 (1.2a) | Jun 2006 (1.3) Nov 2006 (1.3a) | Jun 2009 (1.4) Mar 2010 (1.4a) Oct 2011 (1.4b) | Sep 2013 (2.0) Apr 2015 (2.0a) Mar 2016 (2.0b) | Nov 2017 |
| Signal Specifications | |||||
| Transmission Bandwidth | 4.95 Gbit/s | 10.2 Gbit/s | 10.2 Gbit/s | 18.0 Gbit/s | 48.0 Gbit/s |
| Maximum Data Rate | 3.96 Gbit/s | 8.16 Gbit/s | 8.16 Gbit/s | 14.4 Gbit/s | 42.6 Gbit/s |
| Maximum Character Rate | 165 MHz | 340 MHz | 340 MHz | 600 MHz | 1.2 GHz |
| Data Channels | 3 | 3 | 3 | 3 | 4 |
| Encoding Scheme | 8b/10b | 8b/10b | 8b/10b | 8b/10b | 16b/18b |
| Compression (Optional) | – | – | – | – | DSC 1.2 |
| Color Format Support | |||||
| RGB | Yes | Yes | Yes | Yes | Yes |
| Y′CBCR 4:4:4 | Yes | Yes | Yes | Yes | Yes |
| Y′CBCR 4:2:2 | Yes | Yes | Yes | Yes | Yes |
| Y′CBCR 4:2:0 | No | No | No | Yes | Yes |
| Color Depth Support | |||||
| 8 bpc (24 bit/px) | Yes | Yes | Yes | Yes | Yes |
| 10 bpc (30 bit/px) | Yes | Yes | Yes | Yes | Yes |
| 12 bpc (36 bit/px) | Yes | Yes | Yes | Yes | Yes |
| 16 bpc (48 bit/px) | No | Yes | Yes | Yes | Yes |
| Color Space Support | |||||
| SMPTE 170M | Yes | Yes | Yes | Yes | Yes |
| ITU-R BT.601 | Yes | Yes | Yes | Yes | Yes |
| ITU-R BT.709 | Yes | Yes | Yes | Yes | Yes |
| sRGB | No | Yes | Yes | Yes | Yes |
| xvYCC | No | Yes | Yes | Yes | Yes |
| sYCC601 | No | No | Yes | Yes | Yes |
| AdobeYCC601 | No | No | Yes | Yes | Yes |
| Adobe RGB (1998) | No | No | Yes | Yes | Yes |
| ITU-R BT.2020 | No | No | No | Yes | Yes |
| Audio Specifications | |||||
| Max. Sample Rate Per Channel | 192 kHz | 192 kHz | 192 kHz | 192 kHz | 192 kHz |
| Max. Aggegrate Sample Rate | ? | ? | 768 kHz | 1536 kHz | 1536 kHz |
| Sample Size | 16–24 bits | 16–24 bits | 16–24 bits | 16–24 bits | 16–24 bits |
| Maximum Audio Channels | 8 | 8 | 8 | 32 | 32 |
| 1.0–1.2a | 1.3–1.3a | 1.4–1.4b | 2.0–2.0b | 2.1 | |
| HDMI Version | |||||
Maximale Refreshrate (Hz): Standaard video
| Video Format | HDMI Versie / Maximum Data Rate | |||||||
|---|---|---|---|---|---|---|---|---|
| Shorthand | Resolution | Refresh Rate (Hz) | Data Rate Required | 1.0–1.1 | 1.2–1.2a | 1.3–1.4b | 2.0–2.0b | 2.1 |
| 3.96 Gbit/s | 3.96 Gbit/s | 8.16 Gbit/s | 14.4 Gbit/s | 42.6 Gbit/s | ||||
| 720p | 1280 × 720 | 30 | 720 Mbit/s | Yes | Yes | Yes | Yes | Yes |
| 60 | 1.45 Gbit/s | Yes | Yes | Yes | Yes | Yes | ||
| 120 | 2.99 Gbit/s | No | Yes | Yes | Yes | Yes | ||
| 1080p | 1920 × 1080 | 30 | 1.58 Gbit/s | Yes | Yes | Yes | Yes | Yes |
| 60 | 3.20 Gbit/s | Yes | Yes | Yes | Yes | Yes | ||
| 120 | 6.59 Gbit/s | No | No | Yes | Yes | Yes | ||
| 144 | 8.00 Gbit/s | No | No | Yes | Yes | Yes | ||
| 240 | 14.00 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 1440p | 2560 × 1440 | 30 | 2.78 Gbit/s | No | Yes | Yes | Yes | Yes |
| 60 | 5.63 Gbit/s | No | No | Yes | Yes | Yes | ||
| 75 | 7.09 Gbit/s | No | No | Yes | Yes | Yes | ||
| 120 | 11.59 Gbit/s | No | No | 4:2:2 | Yes | Yes | ||
| 144 | 14.08 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 240 | 24.62 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 4K | 3840 × 2160 | 30 | 6.18 Gbit/s | No | No | Yes | Yes | Yes |
| 60 | 12.54 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 75 | 15.79 Gbit/s | No | No | 4:2:0 | 4:2:2 | Yes | ||
| 120 | 25.82 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 144 | 31.35 Gbit/s | No | No | No | No | Yes | ||
| 240 | 54.84 Gbit/s | No | No | No | No | DSC | ||
| 5K | 5120 × 2880 | 30 | 10.94 Gbit/s | No | No | 4:2:2 | Yes | Yes |
| 60 | 22.18 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 120 | 45.66 Gbit/s | No | No | No | No | DSC | ||
| 8K | 7680 × 4320 | 30 | 24.48 Gbit/s | No | No | No | 4:2:0 | Yes |
| 60 | 49.65 Gbit/s | No | No | No | No | DSC | ||
| 120 | 102.2 Gbit/s | No | No | No | No | DSC | ||
| 1.0–1.1 | 1.2–1.2a | 1.3–1.4b | 2.0–2.0b | 2.1 | ||||
| HDMI Versie | ||||||||
Maximale Refreshrate (Hz): 10-bit HDR
| Video Format | HDMI Versie / Maximum Data Rate | |||||||
|---|---|---|---|---|---|---|---|---|
| Shorthand | Resolution | Refresh Rate (Hz) | Data Rate Required | 1.0–1.1 | 1.2–1.2a | 1.3–1.4b | 2.0–2.0b | 2.1 |
| 3.96 Gbit/s | 3.96 Gbit/s | 8.16 Gbit/s | 14.4 Gbit/s | 42.6 Gbit/s | ||||
| 720p | 1280 × 720 | 30 | 720 Mbit/s | Yes | Yes | Yes | Yes | Yes |
| 60 | 1.45 Gbit/s | Yes | Yes | Yes | Yes | Yes | ||
| 120 | 2.99 Gbit/s | No | Yes | Yes | Yes | Yes | ||
| 1080p | 1920 × 1080 | 30 | 1.58 Gbit/s | Yes | Yes | Yes | Yes | Yes |
| 60 | 3.20 Gbit/s | Yes | Yes | Yes | Yes | Yes | ||
| 120 | 6.59 Gbit/s | No | No | Yes | Yes | Yes | ||
| 144 | 8.00 Gbit/s | No | No | Yes | Yes | Yes | ||
| 240 | 14.00 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 1440p | 2560 × 1440 | 30 | 2.78 Gbit/s | No | Yes | Yes | Yes | Yes |
| 60 | 5.63 Gbit/s | No | No | Yes | Yes | Yes | ||
| 75 | 7.09 Gbit/s | No | No | Yes | Yes | Yes | ||
| 120 | 11.59 Gbit/s | No | No | 4:2:2 | Yes | Yes | ||
| 144 | 14.08 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 240 | 24.62 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 4K | 3840 × 2160 | 30 | 6.18 Gbit/s | No | No | Yes | Yes | Yes |
| 60 | 12.54 Gbit/s | No | No | 4:2:0 | Yes | Yes | ||
| 75 | 15.79 Gbit/s | No | No | 4:2:0 | 4:2:2 | Yes | ||
| 120 | 25.82 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 144 | 31.35 Gbit/s | No | No | No | No | Yes | ||
| 240 | 54.84 Gbit/s | No | No | No | No | DSC | ||
| 5K | 5120 × 2880 | 30 | 10.94 Gbit/s | No | No | 4:2:2 | Yes | Yes |
| 60 | 22.18 Gbit/s | No | No | No | 4:2:0 | Yes | ||
| 120 | 45.66 Gbit/s | No | No | No | No | DSC | ||
| 8K | 7680 × 4320 | 30 | 24.48 Gbit/s | No | No | No | 4:2:0 | Yes |
| 60 | 49.65 Gbit/s | No | No | No | No | DSC | ||
| 120 | 102.2 Gbit/s | No | No | No | No | DSC | ||
| 1.0–1.1 | 1.2–1.2a | 1.3–1.4b | 2.0–2.0b | 2.1 | ||||
| HDMI Versie | ||||||||
Ondersteuning van functies
| HDMI versie | |||||||
|---|---|---|---|---|---|---|---|
| 1.0 | 1.1 | 1.2–1.2a | 1.3–1.3a | 1.4–1.4b | 2.0–2.0b | 2.1 | |
| Full HD Blu-ray Disc and HD DVD video | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Consumer Electronic Control (CEC) | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| DVD-Audio | No | Yes | Yes | Yes | Yes | Yes | Yes |
| Super Audio CD (DSD) | No | No | Yes | Yes | Yes | Yes | Yes |
| Auto lip-sync | No | No | No | Yes | Yes | Yes | Yes |
| Dolby TrueHD / DTS-HD Master Audiobitstream capable | No | No | No | Yes | Yes | Yes | Yes |
| Updated list of CEC commands | No | No | No | Yes | Yes | Yes | Yes |
| 3D video | No | No | No | No | Yes | Yes | Yes |
| Ethernet channel (100 Mbit/s) | No | No | No | No | Yes | Yes | Yes |
| Audio return channel (ARC) | No | No | No | No | Yes | Yes | Yes |
| 4 audio streams | No | No | No | No | No | Yes | Yes |
| 2 video streams (Dual View) | No | No | No | No | No | Yes | Yes |
| Perceptual Quantizer (PQ) HDR OETF (SMPTE ST 2084) | No | No | No | No | No | Yes | Yes |
| Hybrid Log-Gamma (HLG) HDR OETF | No | No | No | No | No | Yes | Yes |
| Static HDR metadata (SMPTE ST 2086) | No | No | No | No | No | Yes | Yes |
| Dynamic HDR metadata (SMPTE ST 2094) | No | No | No | No | No | No | Yes |
| Enhanced audio return channel (eARC) | No | No | No | No | No | No | Yes |
| Variable Refresh Rate (VRR) | No | No | No | No | No | No | Yes |
| Quick Media Switching (QMS) | No | No | No | No | No | No | Yes |
| Quick Frame Transport (QFT) | No | No | No | No | No | No | Yes |
| Auto Low Latency Mode (ALLM) | No | No | No | No | No | No | Yes |
| Display Stream Compression (DSC) | No | No | No | No | No | No | Yes |
| 1.0 | 1.1 | 1.2–1.2a | 1.3–1.3a | 1.4–1.4b | 2.0–2.0b | 2.1 | |
| HDMI versie | |||||||
Bron: wikipedia.org

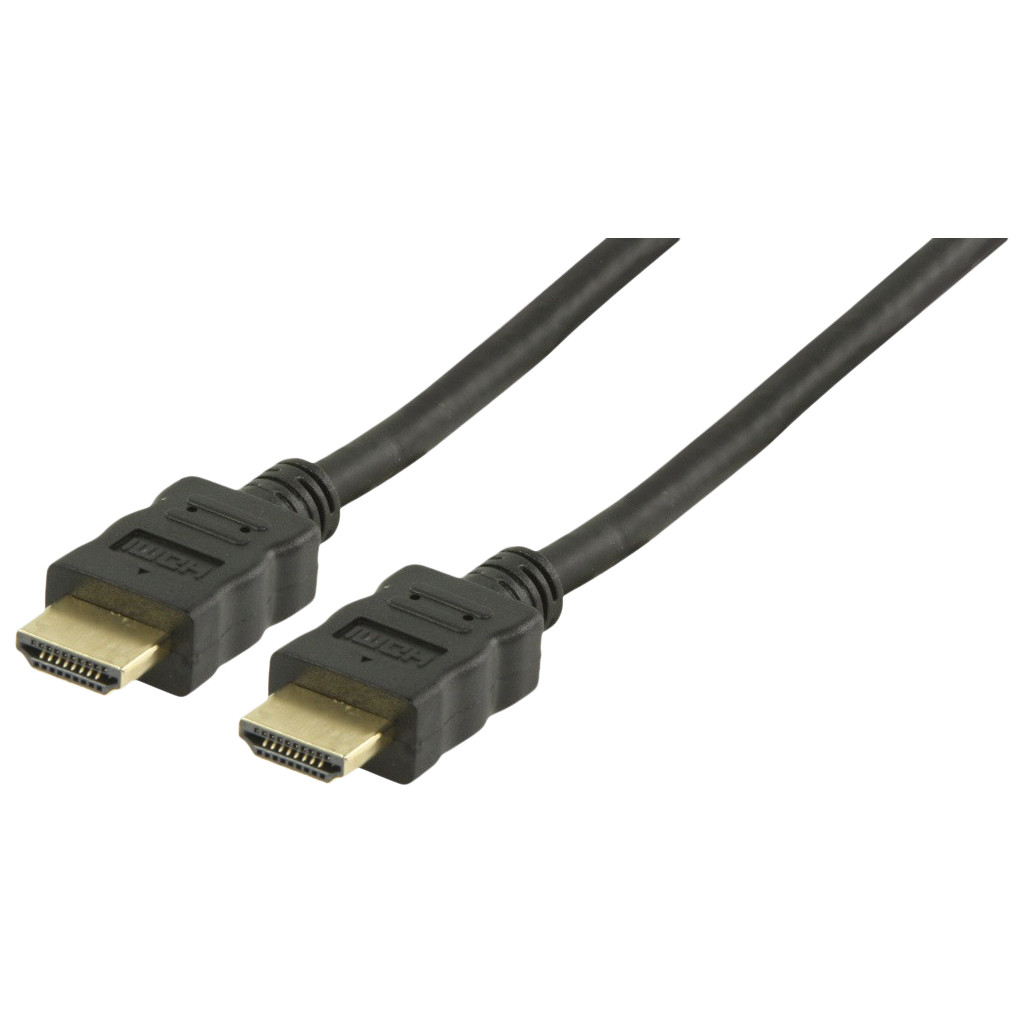

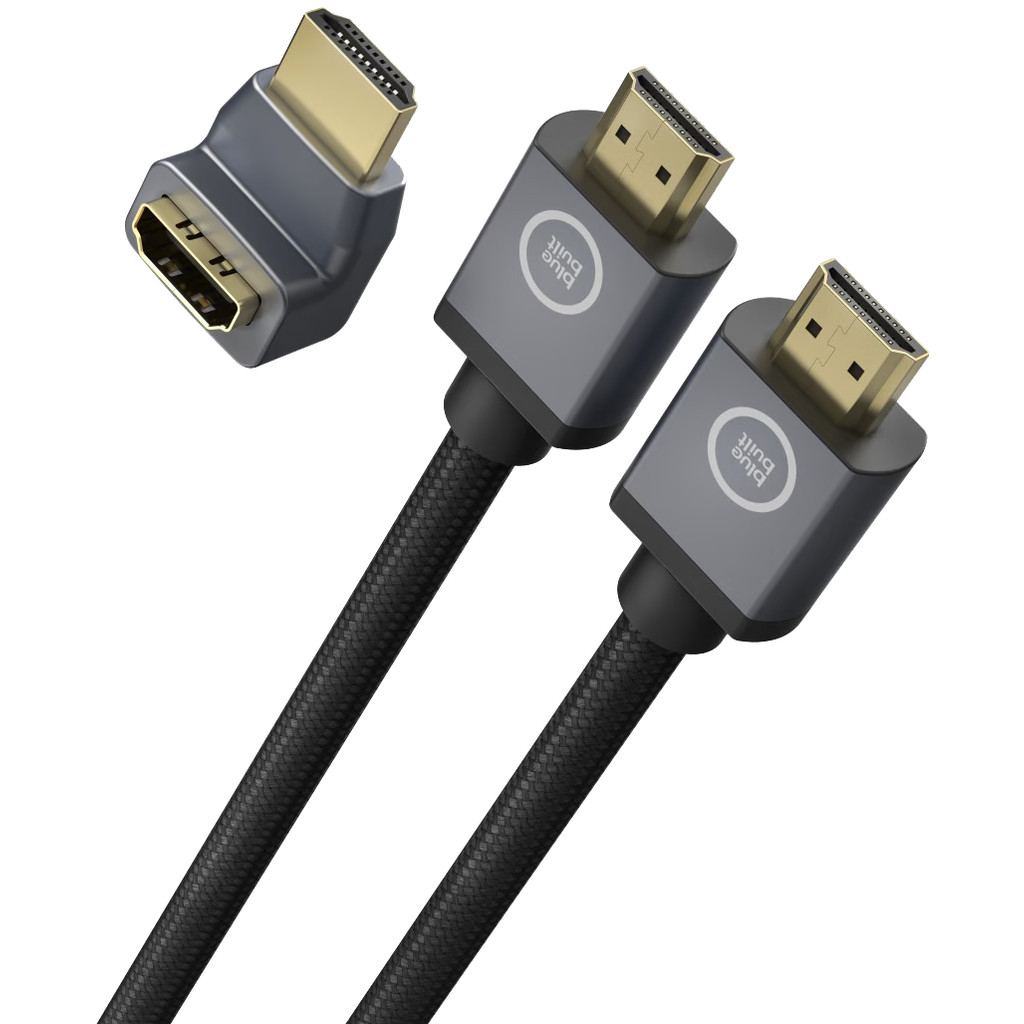

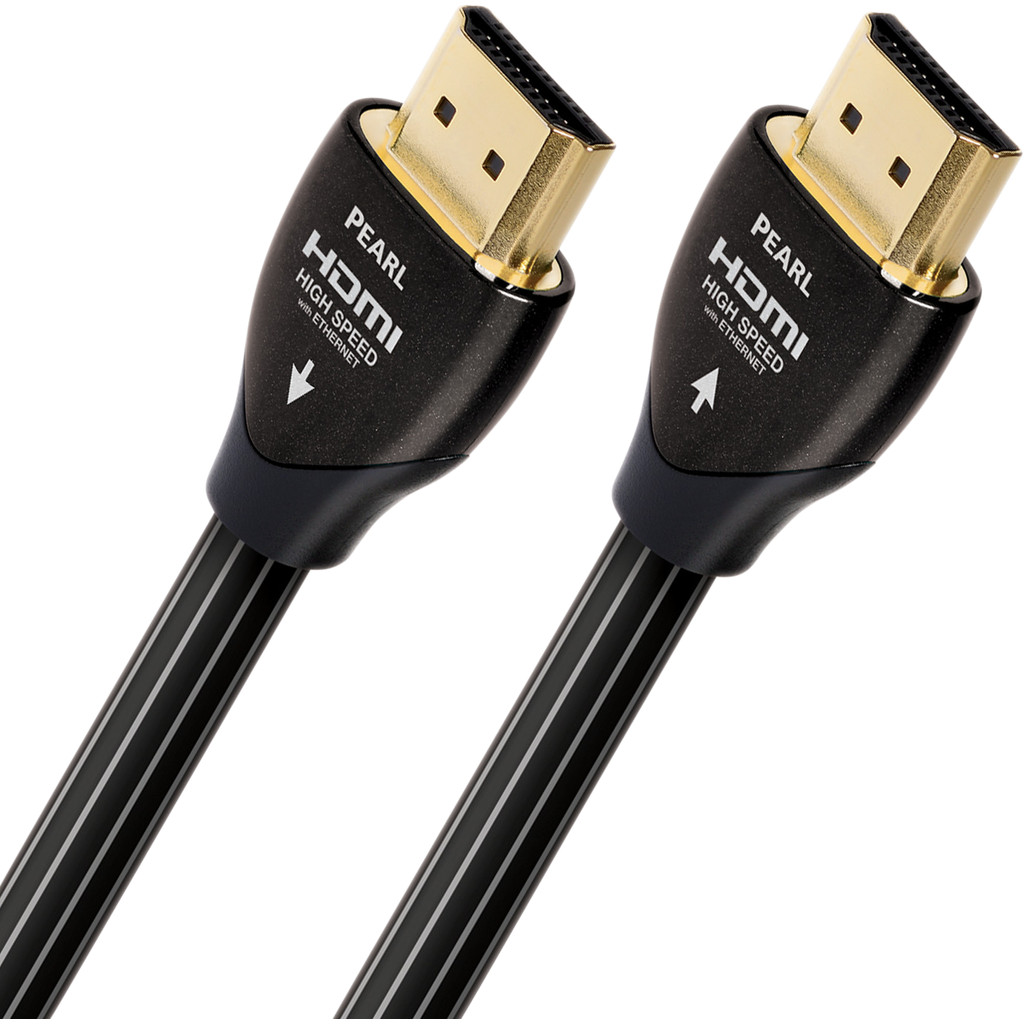

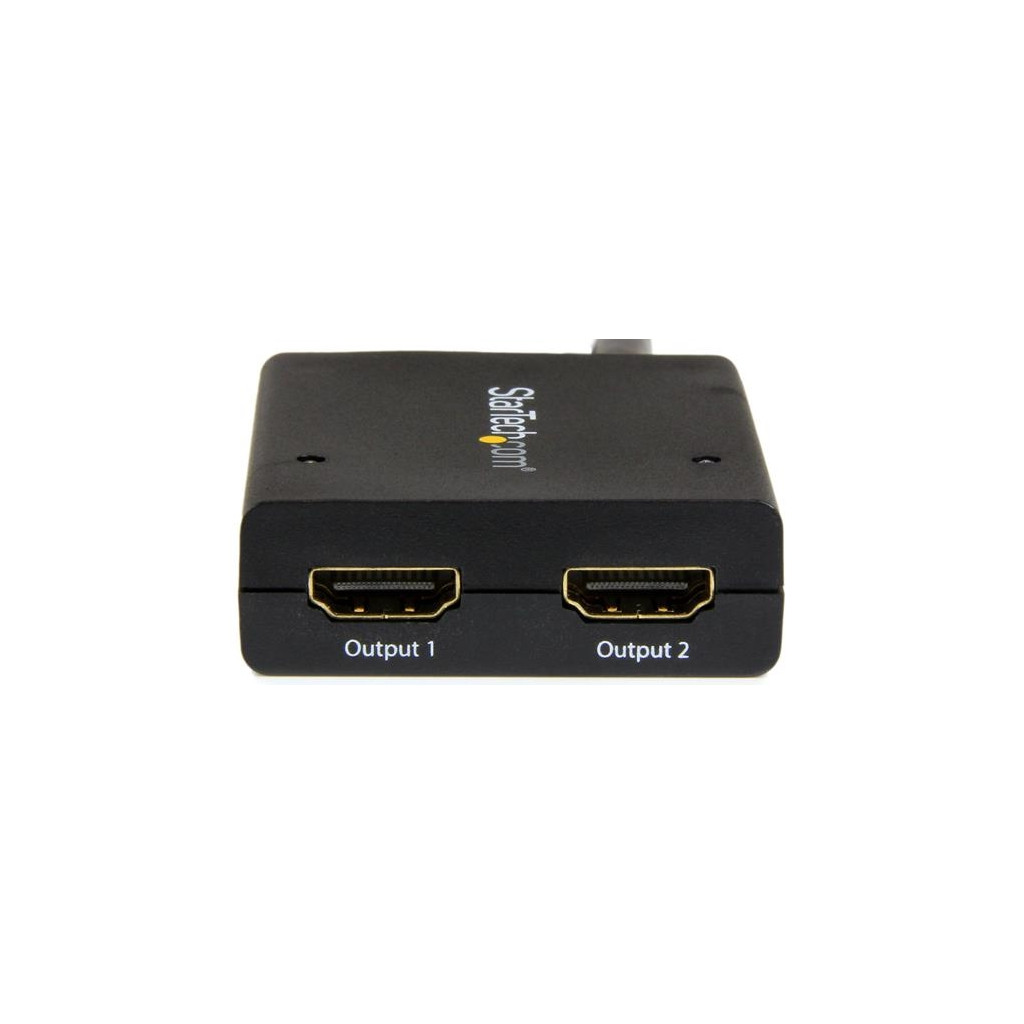

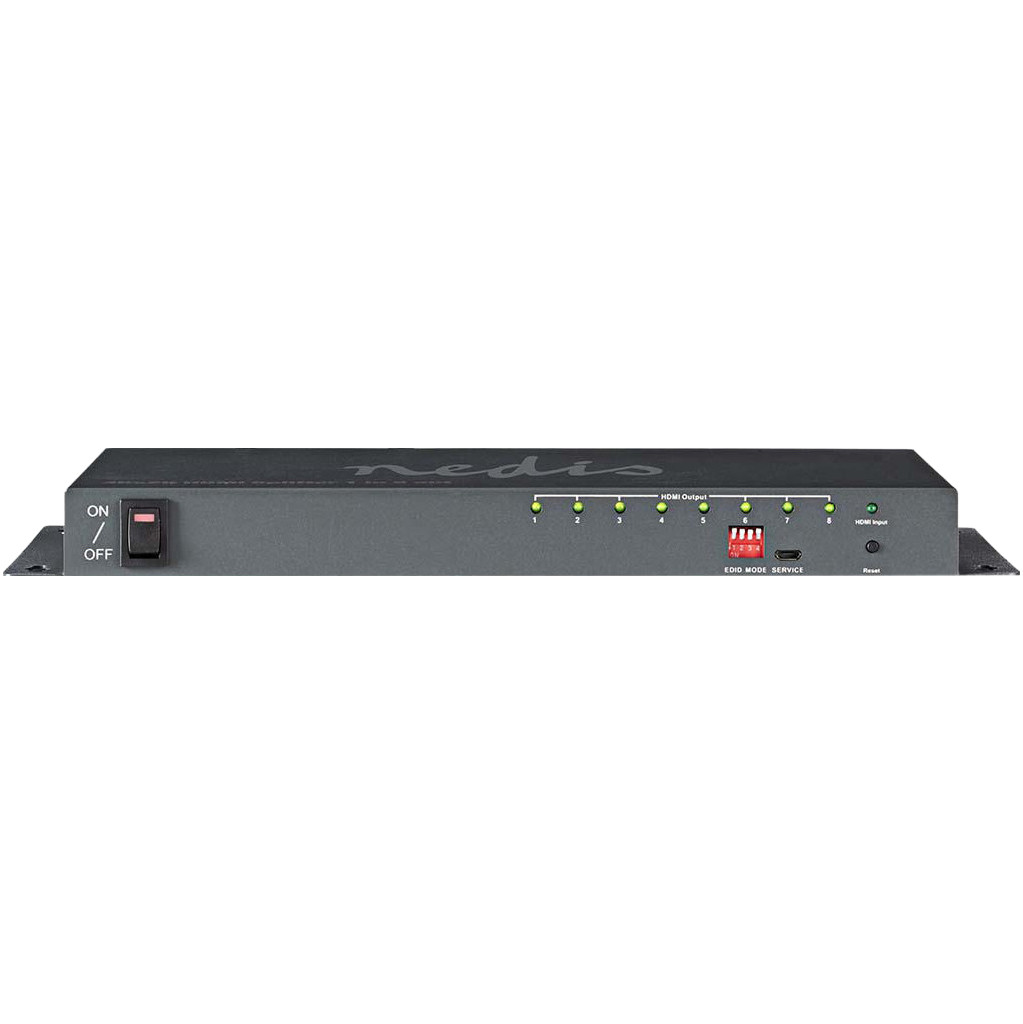

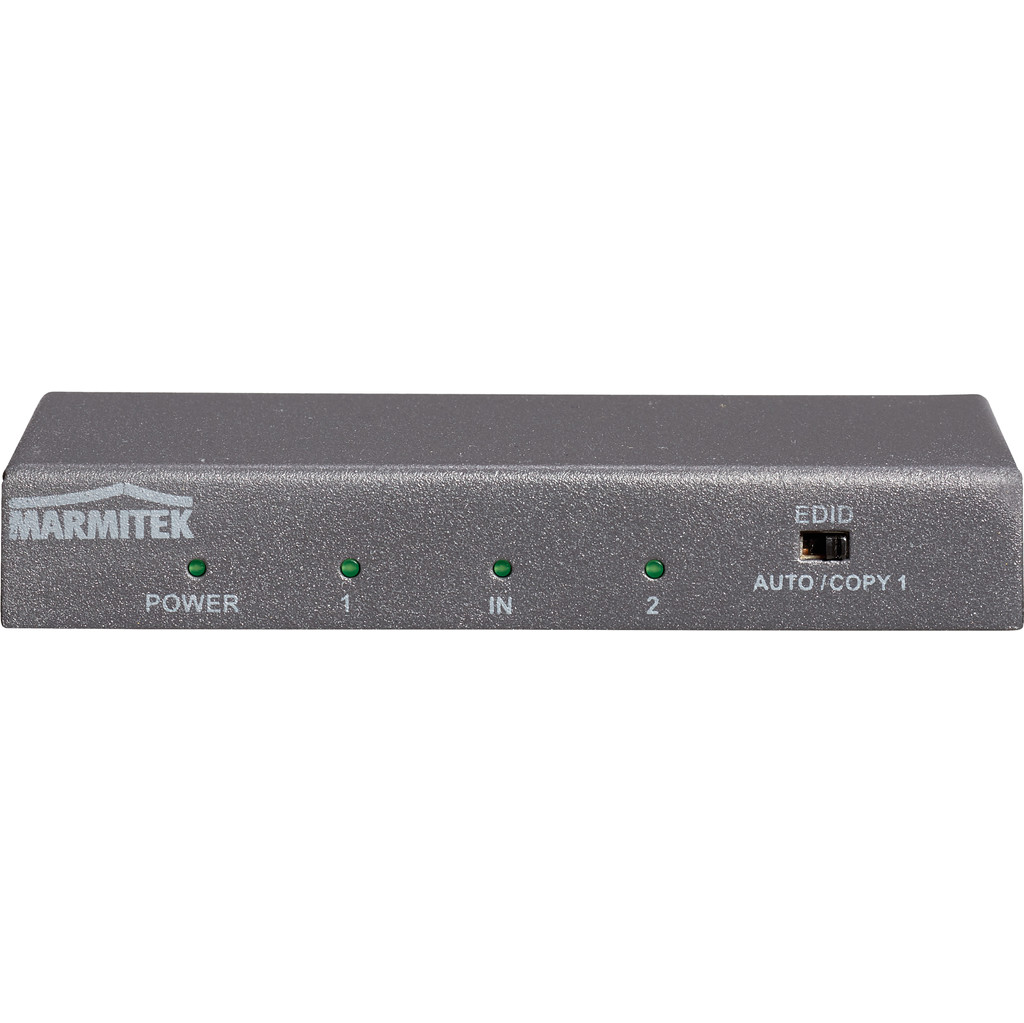

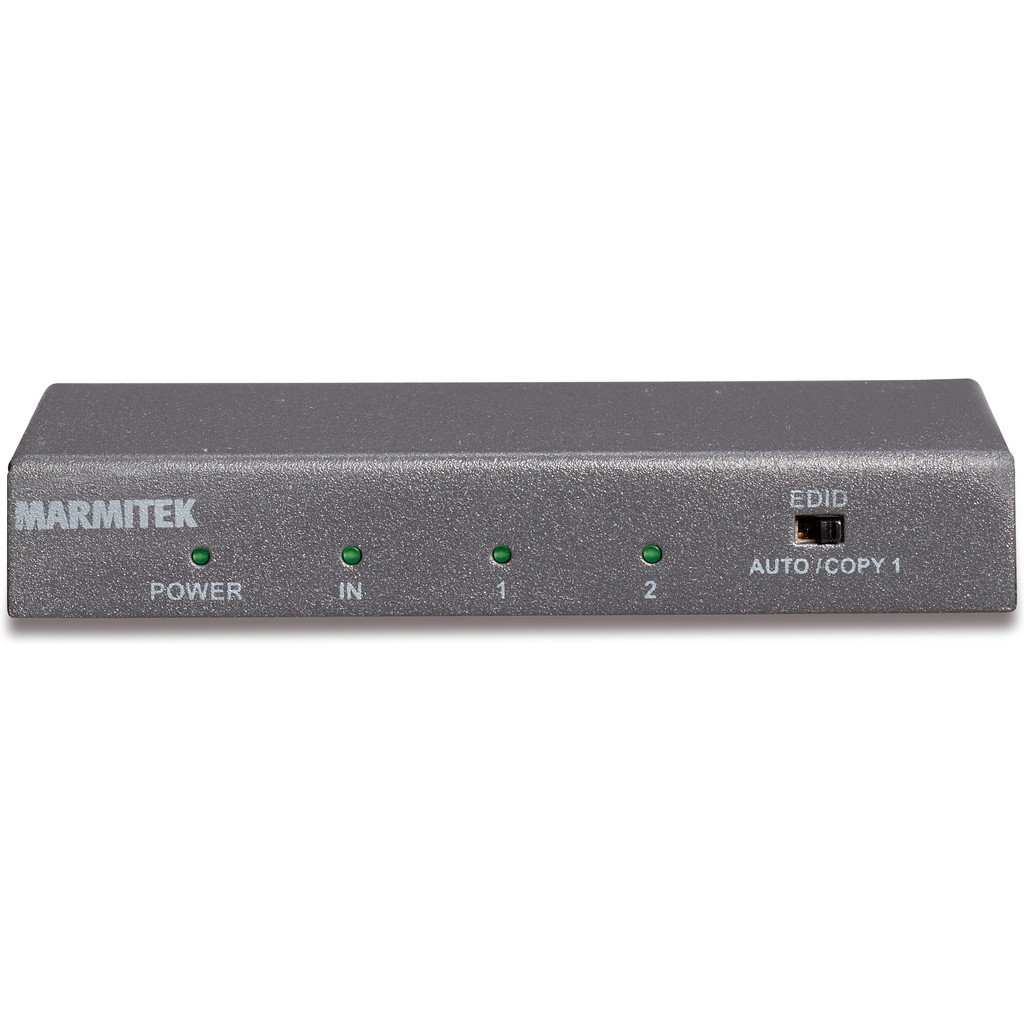

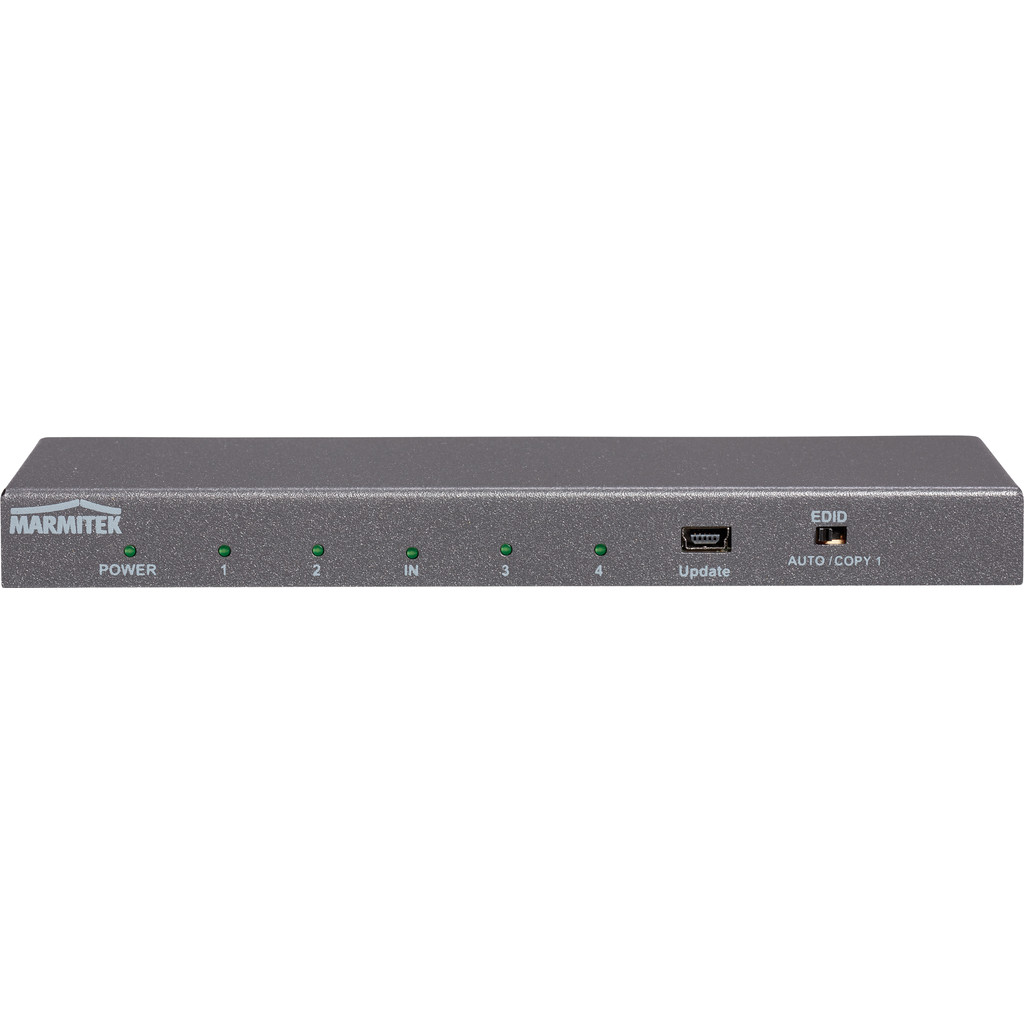

HDMI Kabels
Alternatieven
Een alternatief op HDMI is de ‘DisplayPort‘ type kabel. Deze kan resoluties tot maar liefst 8K doorgeven. Dat is vooral geschikt voor de zakelijke markt, waarbij bijvoorbeeld hoge kwaliteit conference calls kunnen worden weergegeven met meerdere personen in HD op een groot display.
